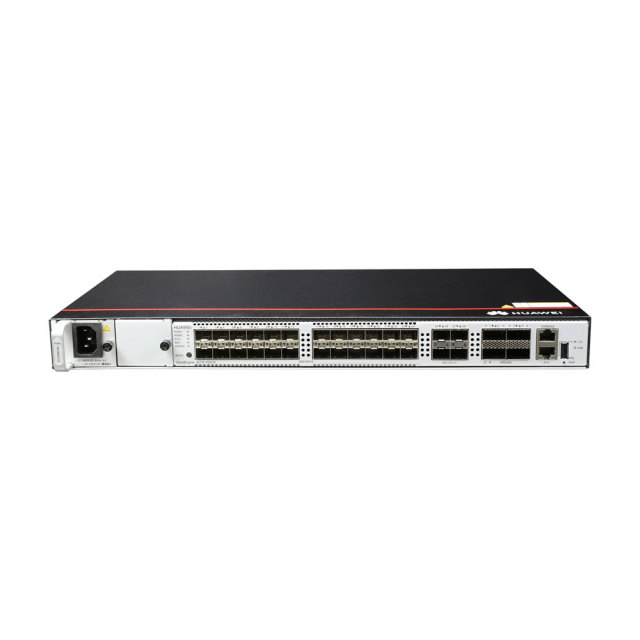

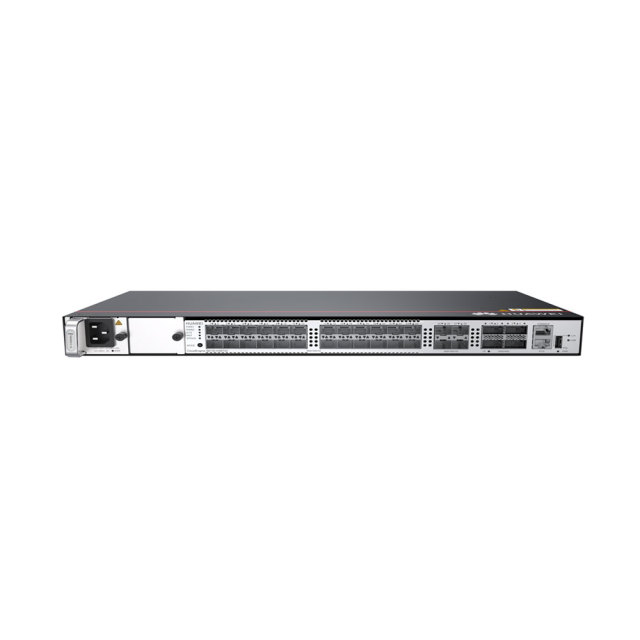

The Huawei S6730-H28Y4C switch is a high-performance, versatile networking solution from the Huawei S6700 Series Switches portfolio. Engineered to cater to the demands of enterprises, data centers, and high-end campus networks, it boasts cutting-edge features and robust security measures to ensure high-speed data transmission and reliable network connectivity.
| Specification of S6730-H28Y4C | |
| Dimensions without packaging (H x W x D) |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm |
| Dimensions with packaging (H x W x D) | 115.0 mm x 545.0 mm x 360.0 mm |
| Chassis height | 1 U |
| Chassis material | Metal |
| Weight without packaging | 3.4 kg |
| Weight with packaging | 4.65 kg |
| Typical power consumption | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| Static power consumption | 116 W |
| MTBF [years] | 54.68 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) | 64.5 dB |
| Noise at normal temperature (acoustic pressure) | 51.7 dB |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 3 |
| Redundant power supply |
1+1 Pluggable AC and DC power modules can be used together in the same switch. |
| Long-term operating temperature | -5°C to +45°C at an altitude of 0-1800 m |
| Restriction on the operating temperature variation rate |
When the altitude is 1800–5000 m, the highest operating temperature reduces by 1°C every time the altitude increases by 220 m. The device cannot start when the temperature is lower than 0°C . When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C. |
| Storage temperature | -40°C to +70°C |
| Long-term operating relative humidity | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude | 0-5000 m |
| Storage altitude | 0-5000 m |
| Power supply mode | Pluggable power supply |
| Rated input voltage |
|
| Input voltage range |
|
| Maximum input current | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection | - |
| Power supply surge protection |
|
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
