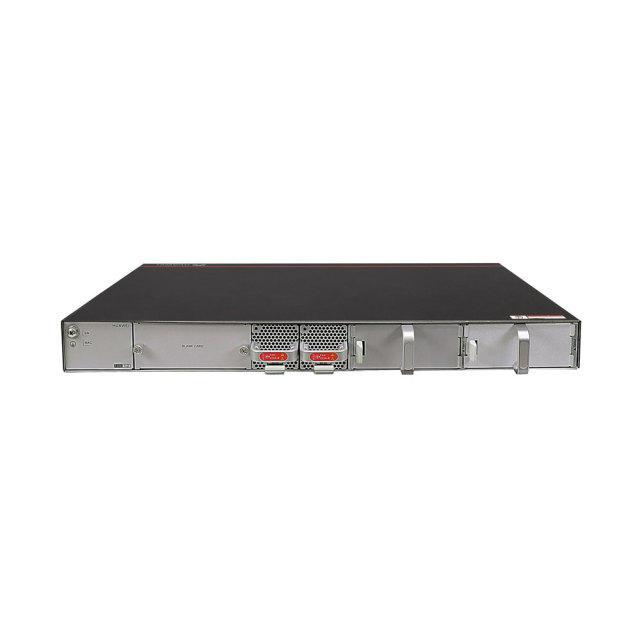

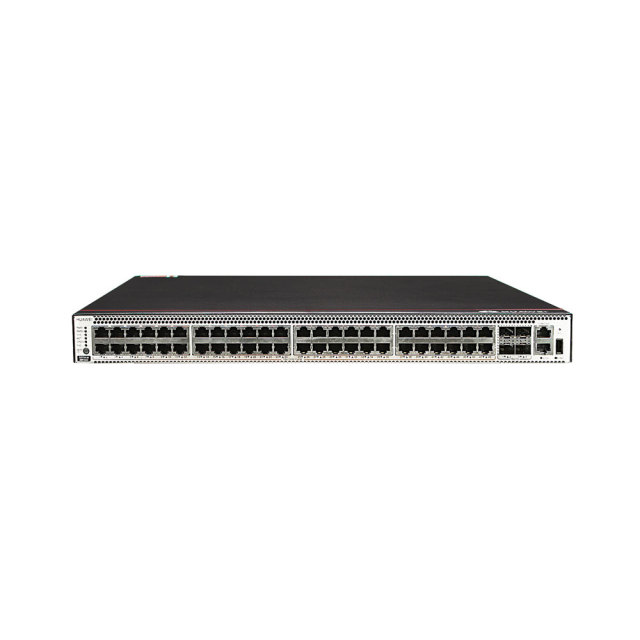

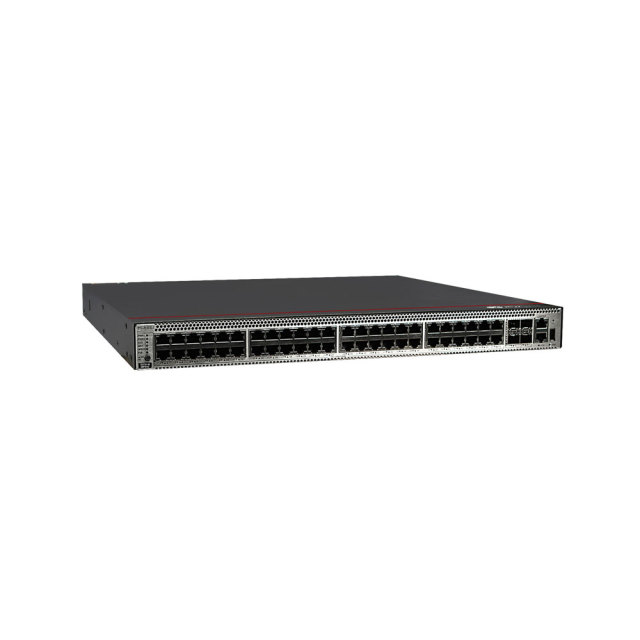

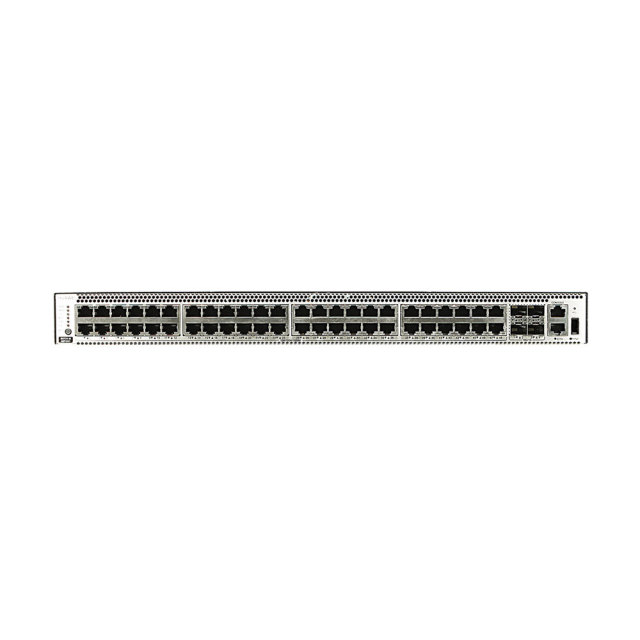

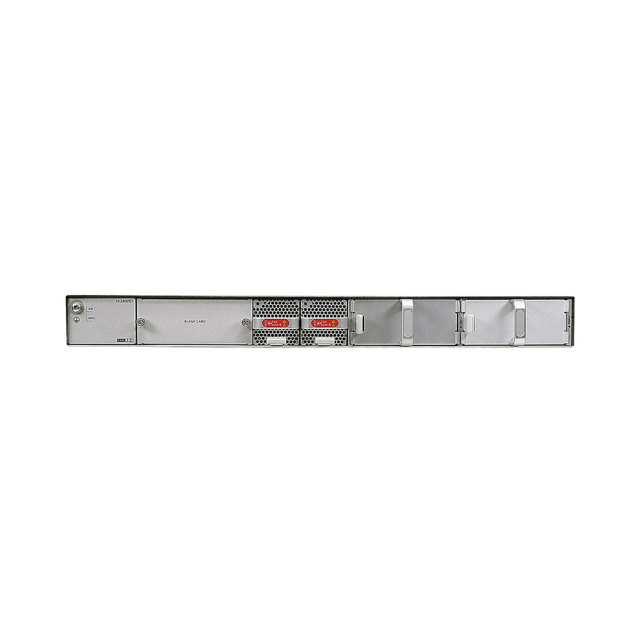

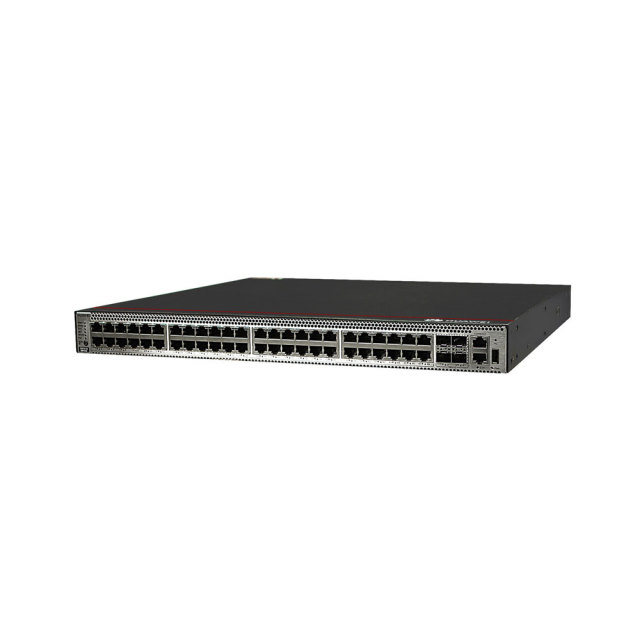

Name: S5731-H48P4XC
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

Description

The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception. With these merits, the CloudEngine S5731-H can function as core switches for small-sized campus networks and branches of medium-and large-sized campus networks, and also work as access switches for Metropolitan Area Network.

Specification of S5731-H48P4XC
Fixed port	48 x10/100/1000Base-T(PoE+) ports, 4 x10GE SFP+ ports
Dimensions (HxWxD)	43.6 mm x 442 mm x 420 mm
Chassis height	1 U
Chassis weight(including packaging)	8.8 kg
Extended slot	One extended slot, support 2 x 40GE, 8 x 10GE Base-T and 8 x 10GE SFP+ cards*
Power supply type	1000W PoE AC(pluggable) 1000W PoE DC(pluggable) 600W AC(pluggable)
Rated voltage range	AC input (1000W AC PoE): 100V AC to 240 V AC, 50/60 Hz DC input (1000W AC PoE): 240V DC DC input (1000W DC PoE): -48V DC to -60 V DC
Maximum voltage range	AC input (1000W AC PoE): 90V AC to 290V AC, 45Hz to 65 Hz High-voltage DC input (1000W AC PoE): 190V DC to 290V DC (meeting 240V high-voltage DC certification) DC input (1000W DC PoE): -38.4V DC to -72V DC
Maximum power consumption	132 W (without PD) 1750W (with PD, PD power consumption of 1440W)
Operating temperature	0-1800 m altitude: -5°C to 45°C 1800-5000m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220m.
Storage temperature	-40°C to +70°C
Relative humidity	5% to 95% (non-condensing)
Surge protection specification (service port)	Common mode: ±6 kV
Surge protection specification (power port)	AC power port: ±6kV in differential mode, ±6 kV in common mode DC power port: ±2kV in differential mode, ±4 kV in common mode
Heat dissipation	Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
